Description

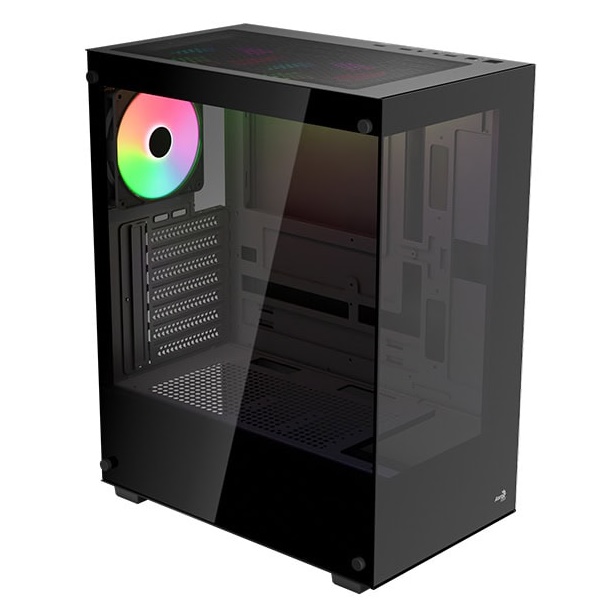

Give your PC a boost with this new Miditower (ATX) Chassis from AeroCool
Specifications
| SKU | Pivot-G-BK-v3 |
| Case Type | Mid Tower |
| Color | Black |
| Body Material | SPCC |
| Front Panel Material | Steel |
| Steel Thickness | 0.5mm |
| Motherboards | ATX/Micro ATX/mini-ITX |
| Case Dimensions (Internal) (W x H x D) | 218 x 435 x 350 mm |
| Case Dimensions (Overall) (W x H x D) | 223.5 x 448.5 x 369.5 mm |
| 3.5” Drive Bays | 2 Max. (2 x 3.5”/2.5″) |
| 2.5” Drive Bays | 2 Max. (2 x 2.5”/3.5″) |
| Expansion Slots | 7 |
| GPU Clearance | Supports GPU up to 345mm |
| CPU Cooler Clearance | Supports CPU cooler up to 170mm |
| Air Cooling | Top: 120mm x 2 or 140mm x 2 (Max.), PSU Shroud: 120mm x 2 (Max.), Rear: 120mm x 1 (Max.) |
| Liquid Cooling | Top: 240mm Radiator (Optional) (Thermal Armor or Memory Height<45mm), Rear: 120mm Radiator (Optional) |

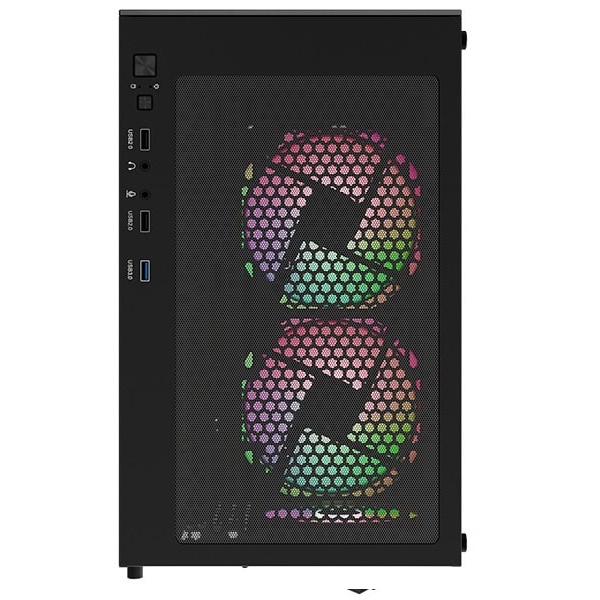

| I/O Ports | USB3.0 x 1 | USB2.0 x 2 | HD Audio & Mic. |
| Internal Cable Management Depth | 23.5mm |
| Power Supply | ATX PSU (Including cables, up to 166mm) (Optional) |
